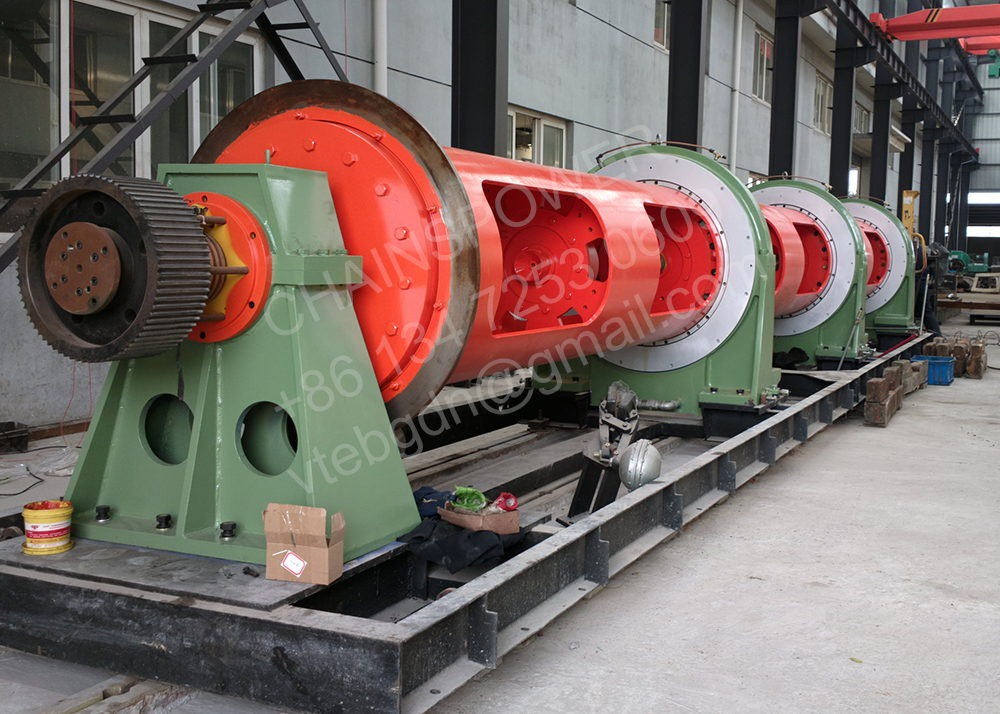

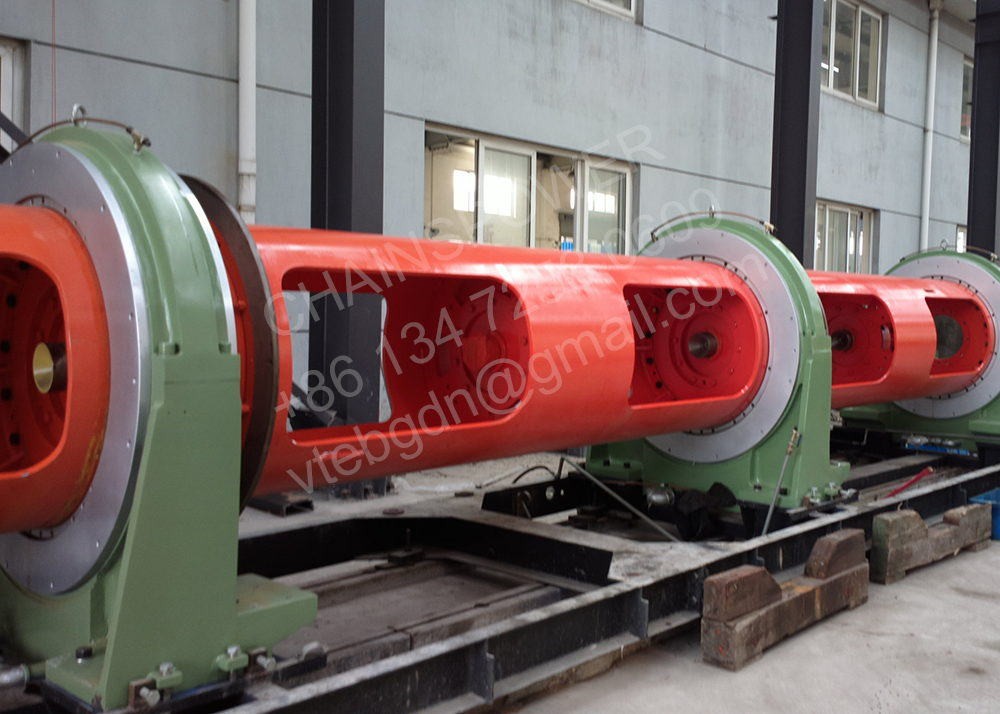

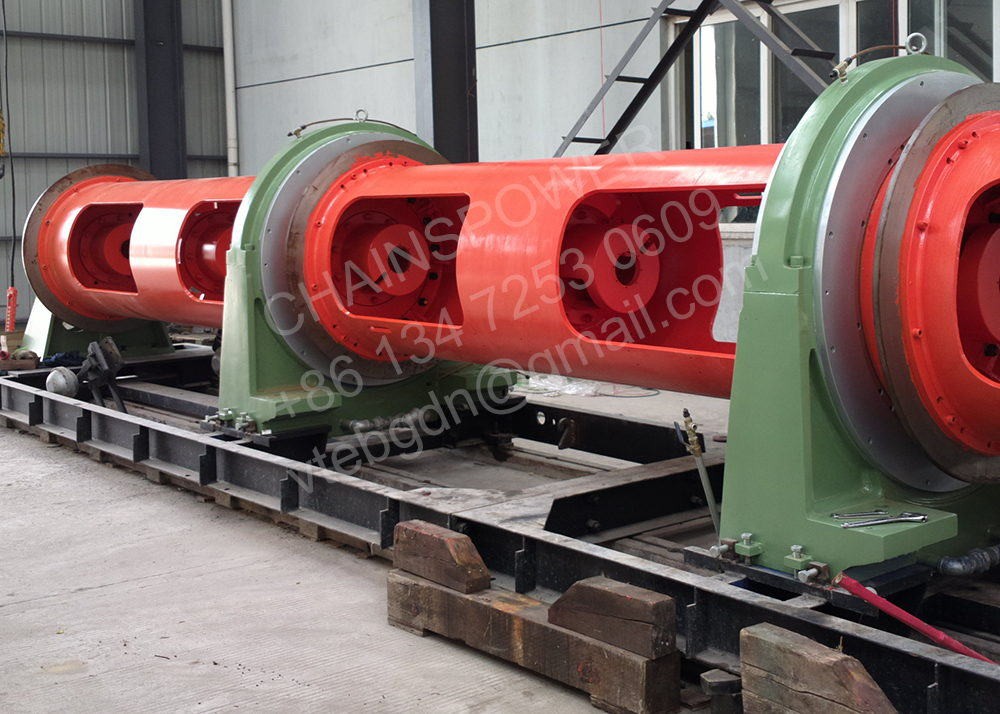

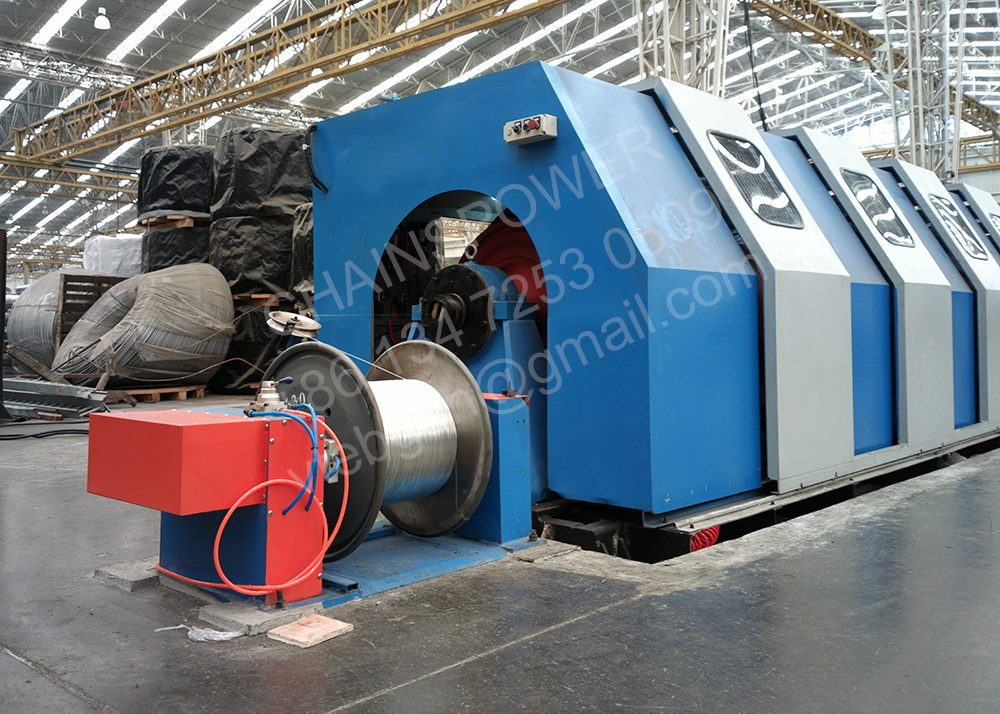

High Speed 500/1+12 Tubular Stranding Machine

Applications

19 round or sector shape cable of copper/aluminum conductors as well as for steel wires stranding.

Description

We have developed a special high-speed back-up bearing for the tubular strander.

What can we do?

Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

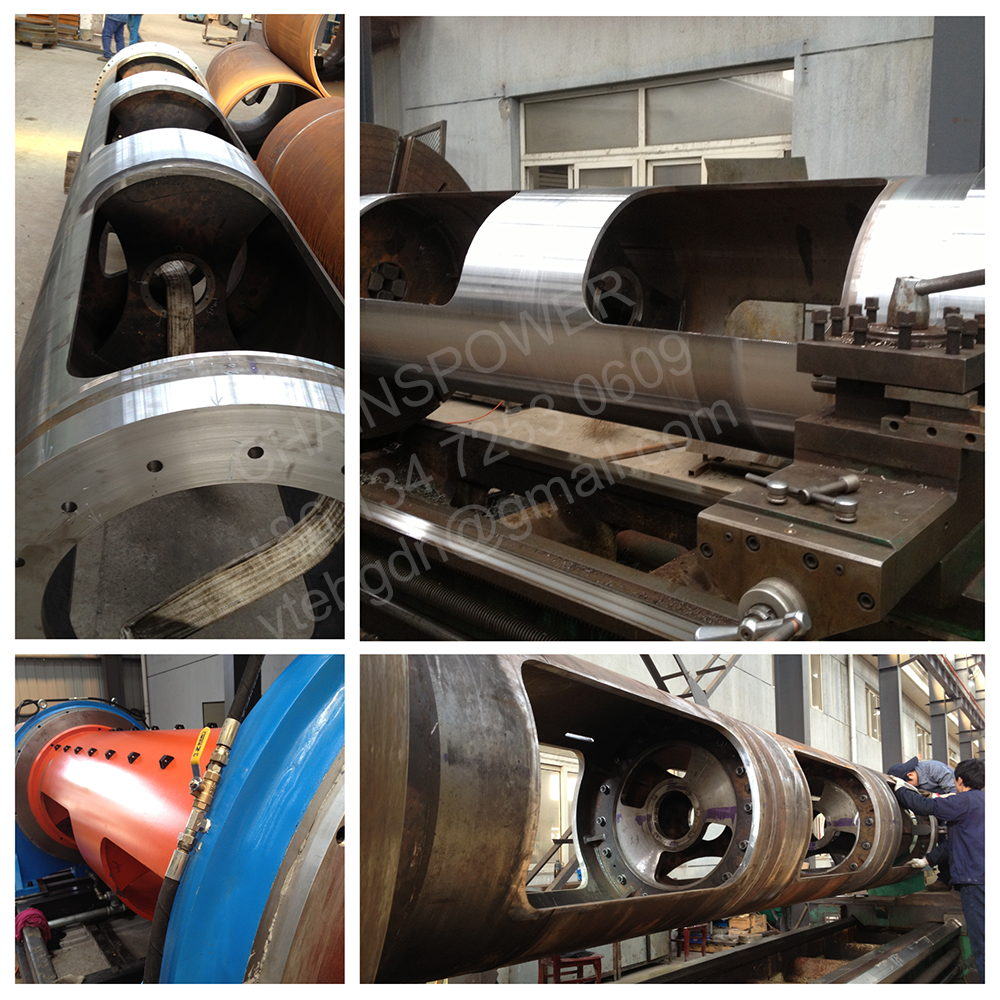

ROTOR PRODUCE

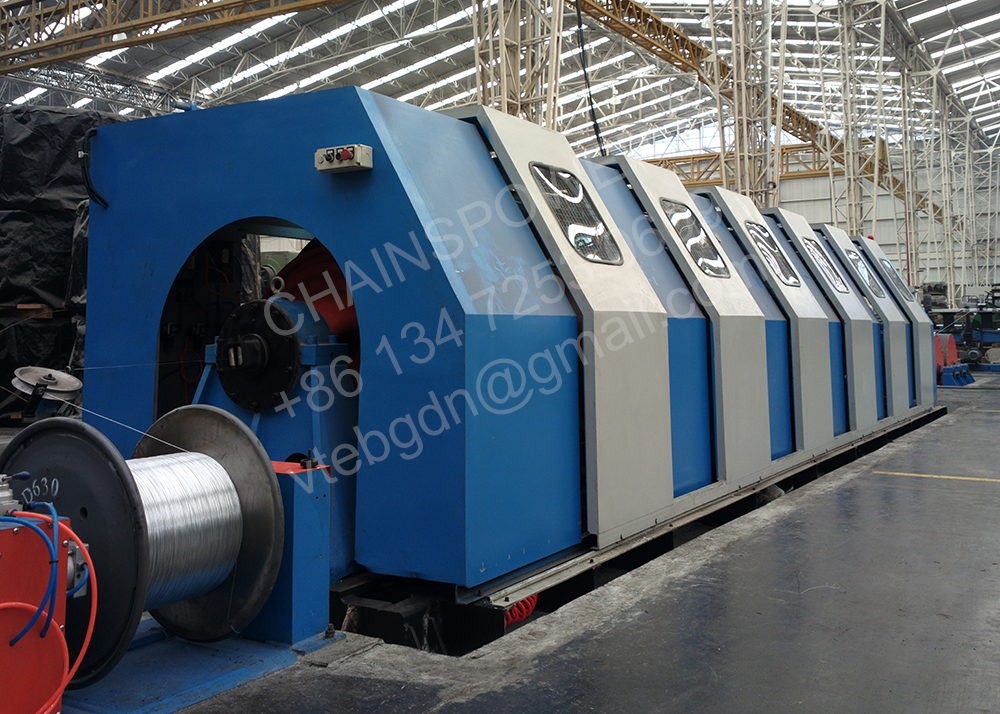

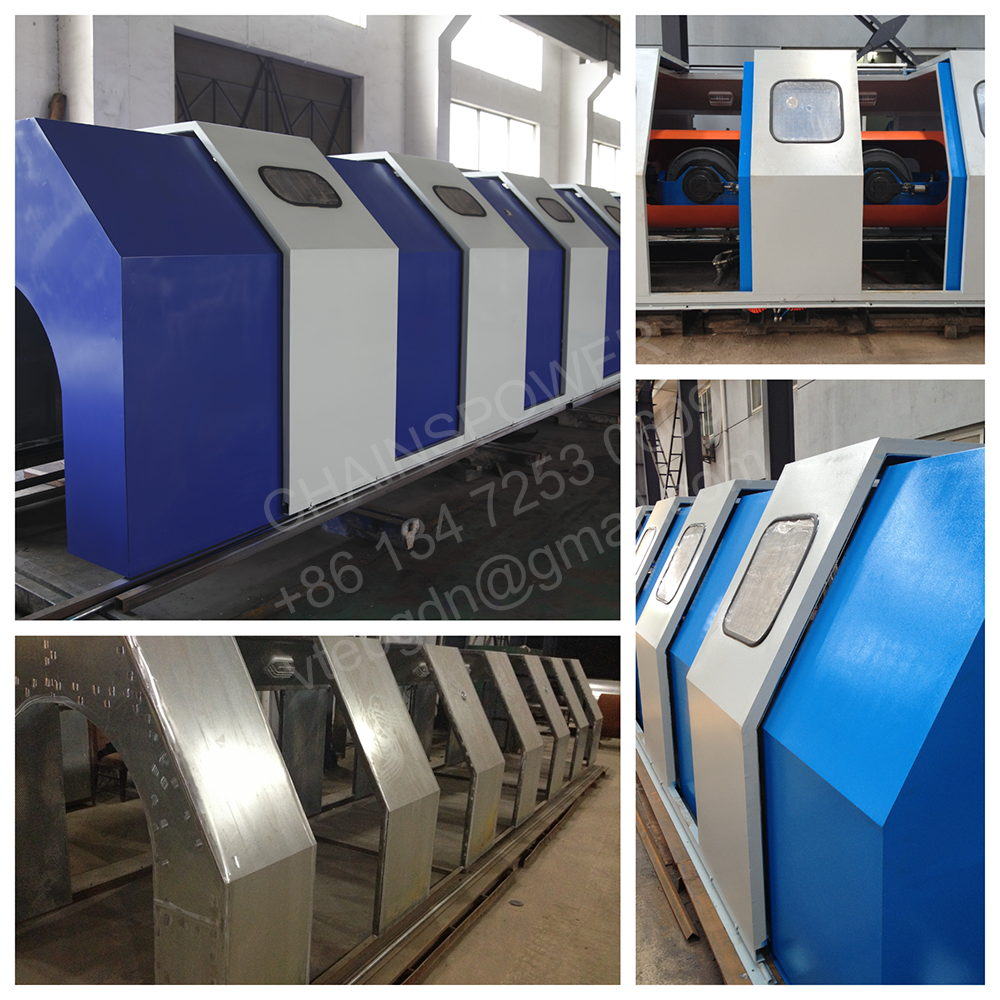

SAFETY COVER

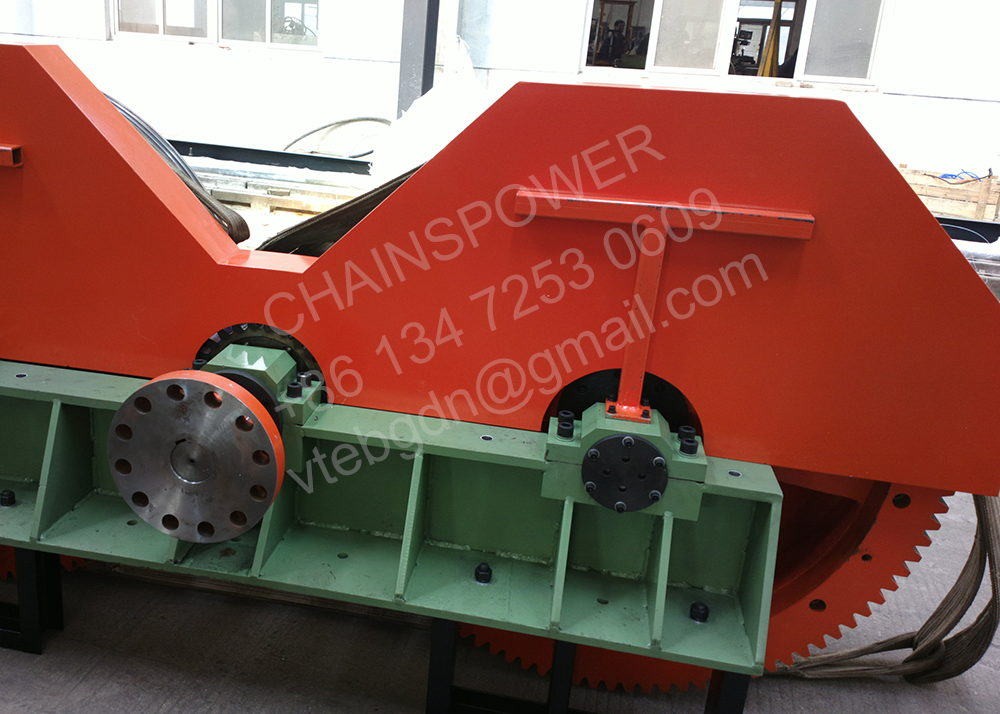

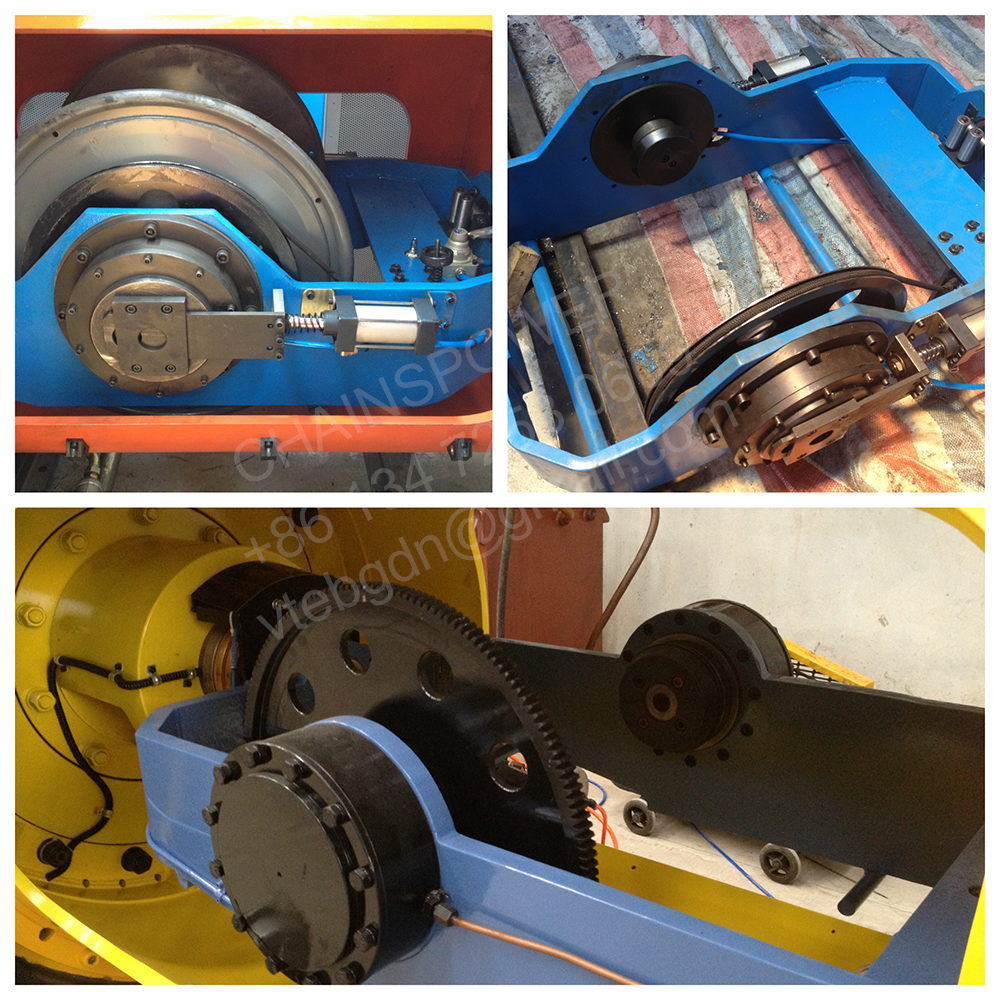

CRADLE

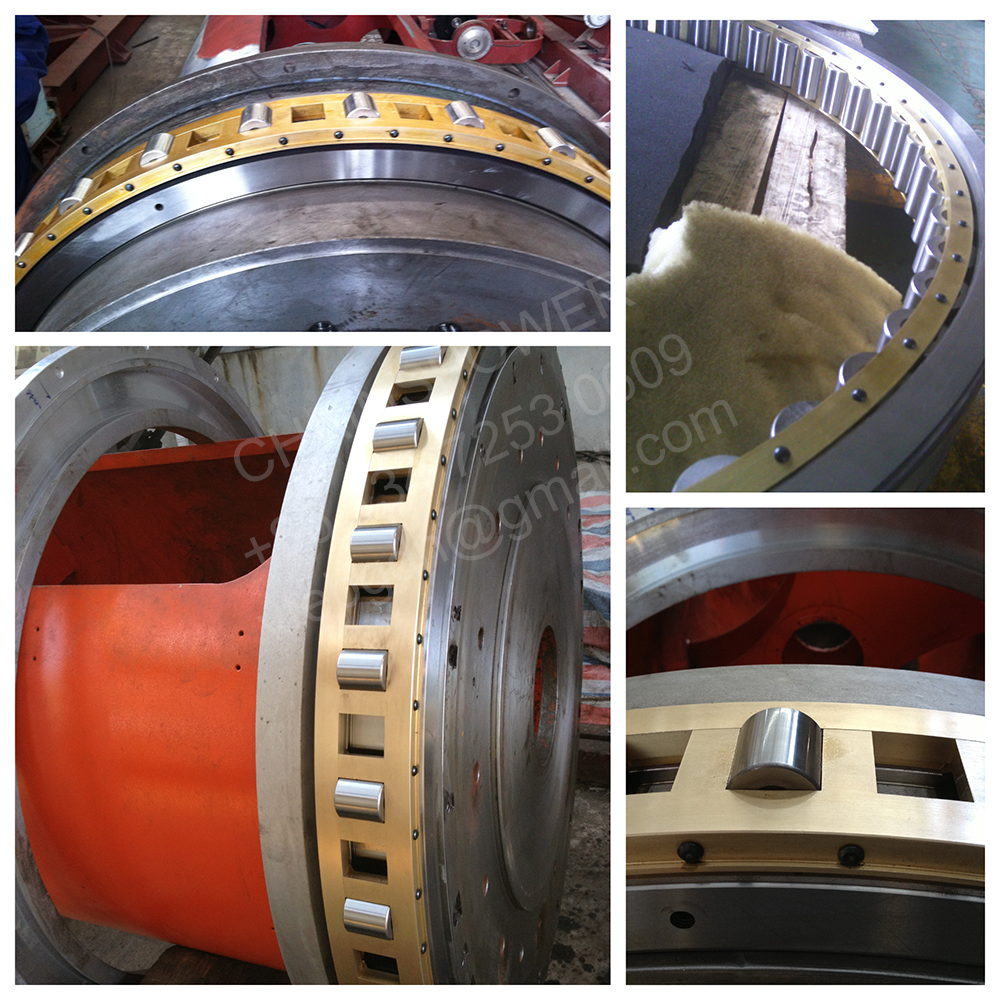

BIG BEARING

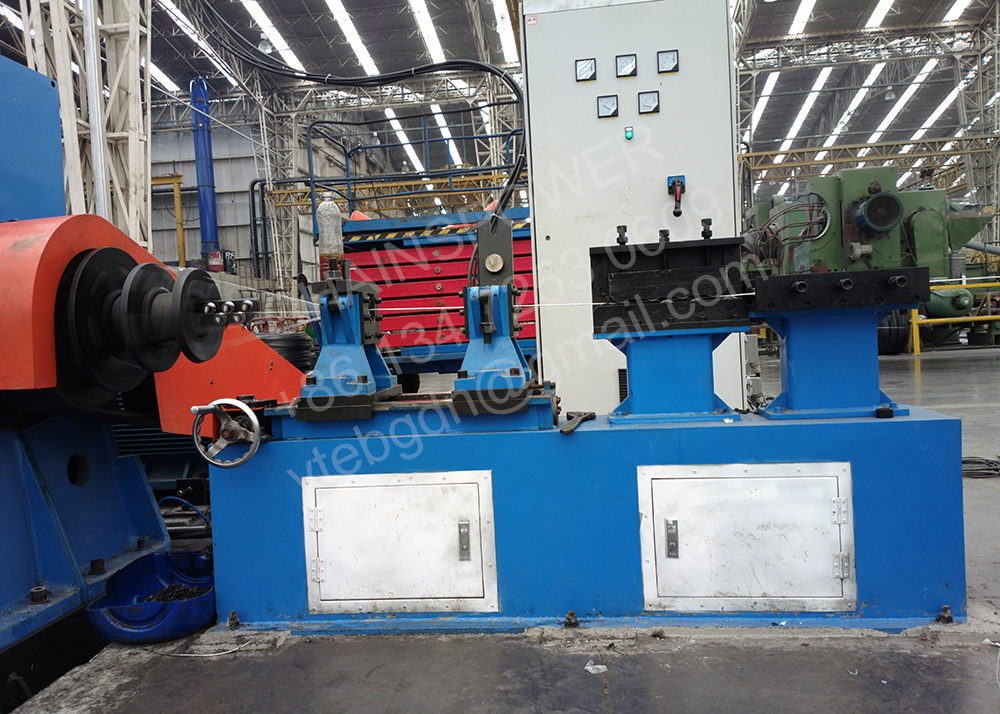

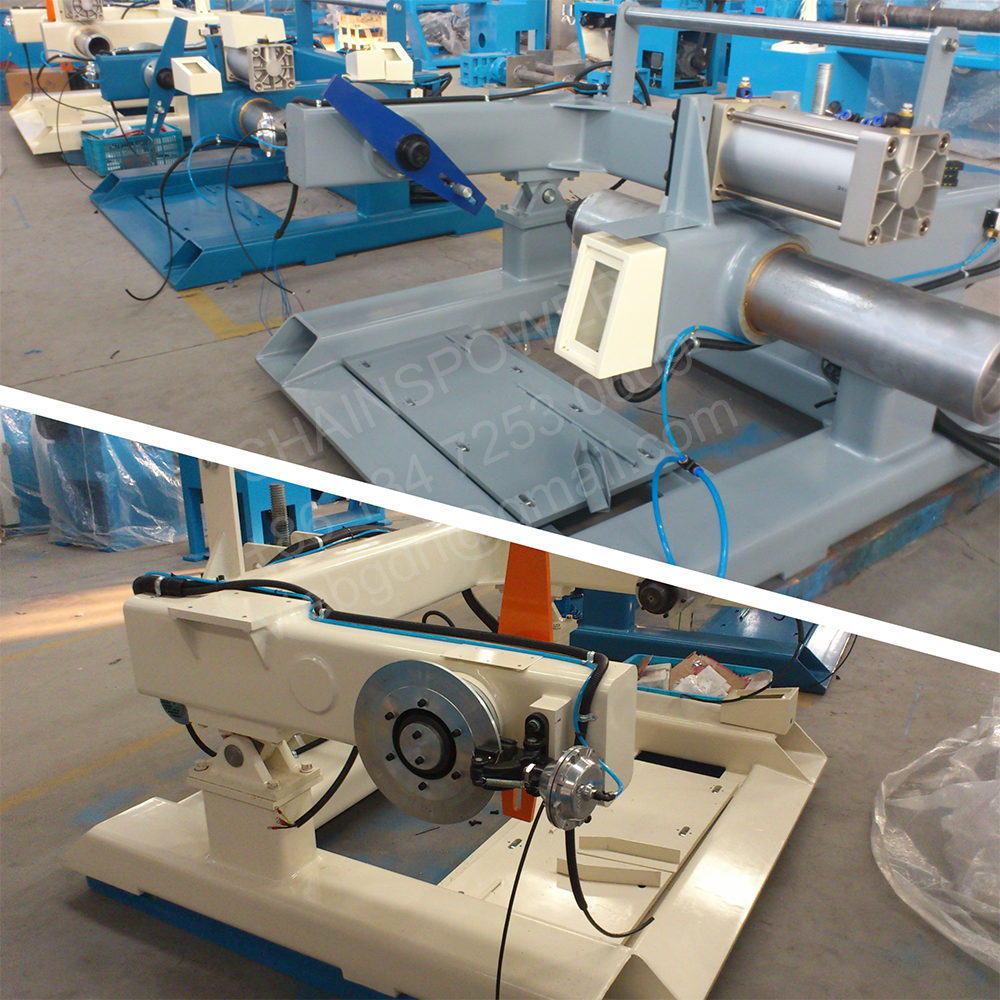

CANTILEVER TAKEUP

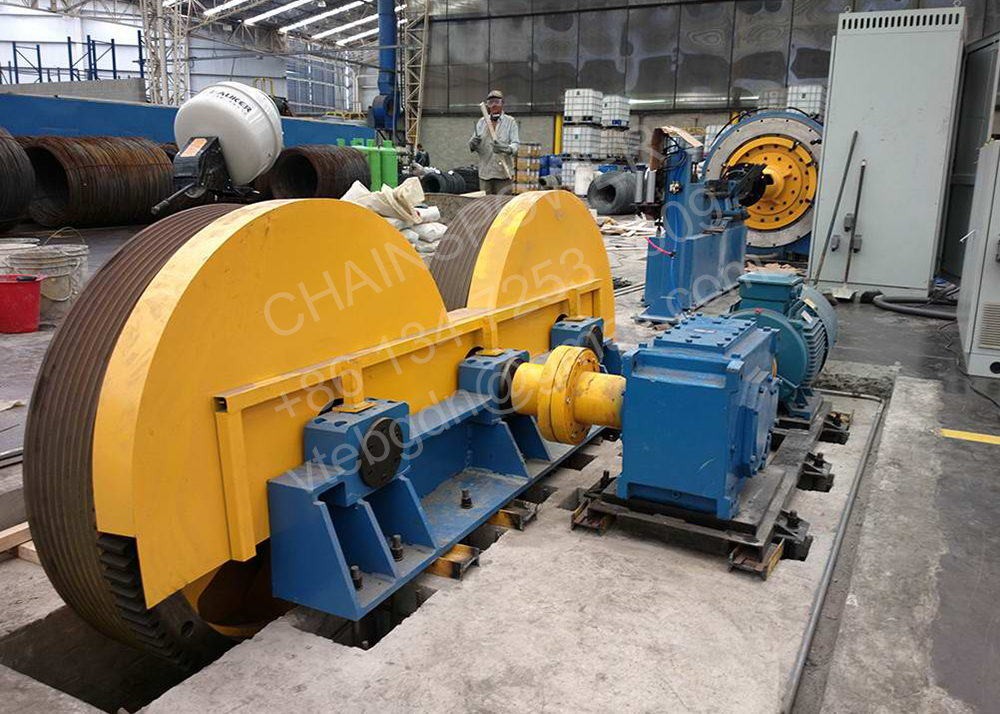

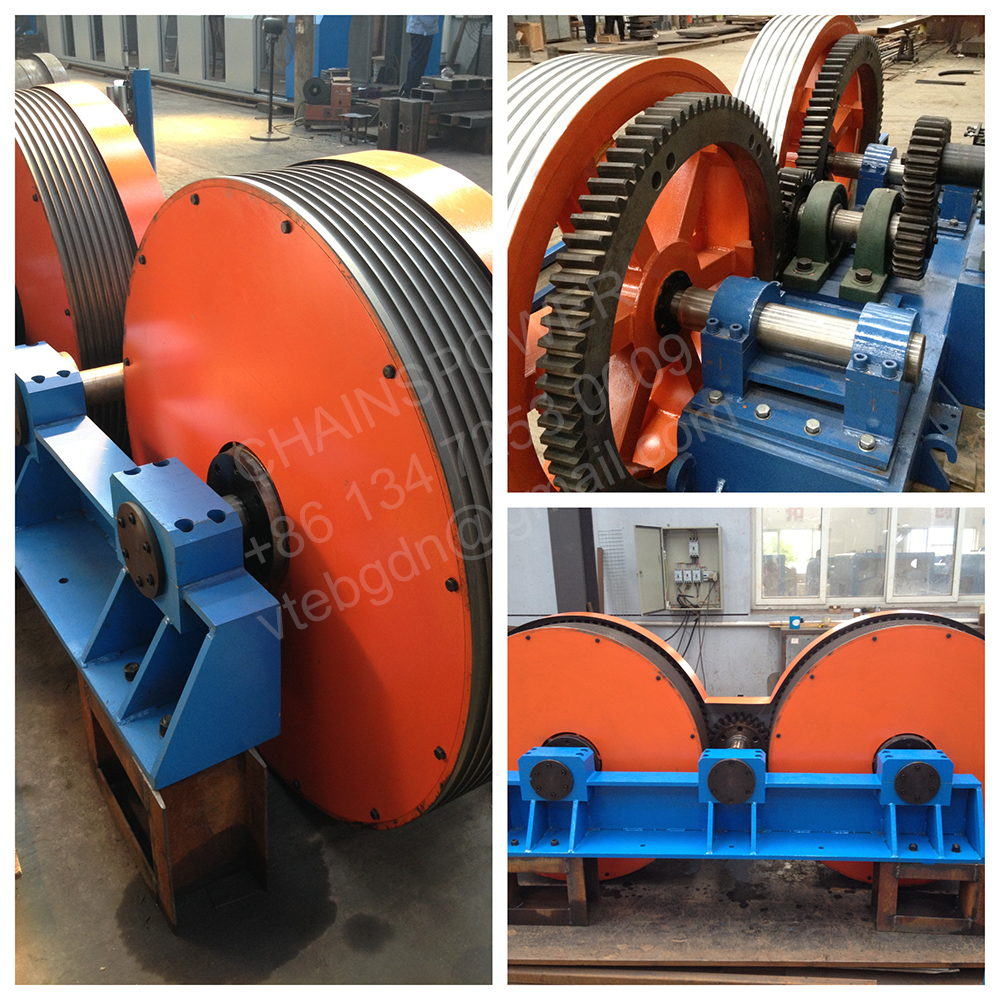

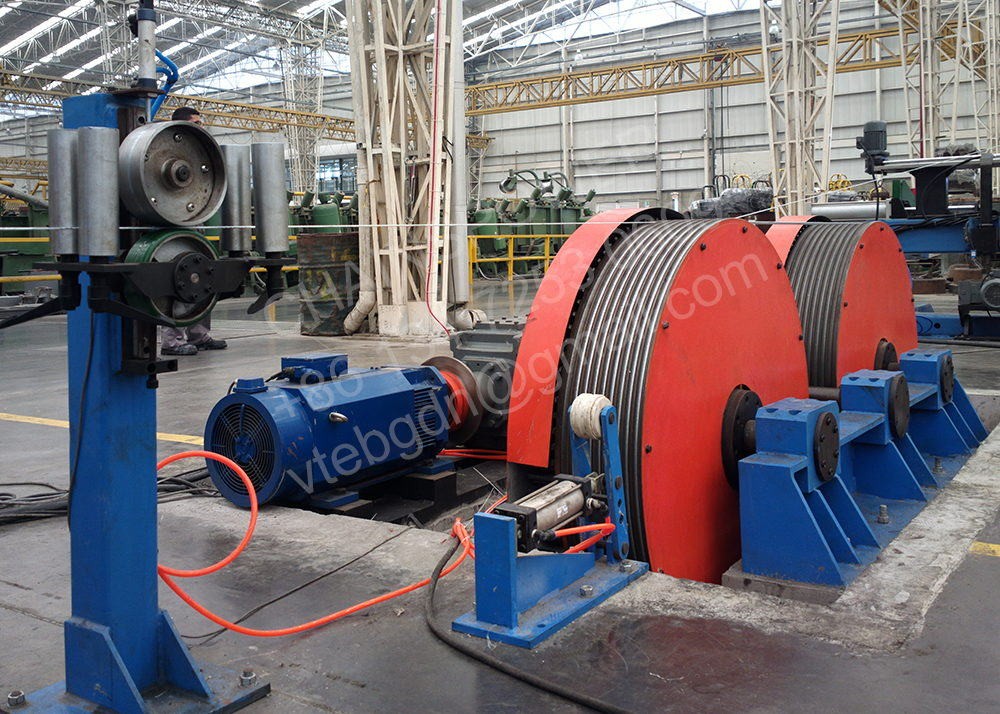

CAPSTAN

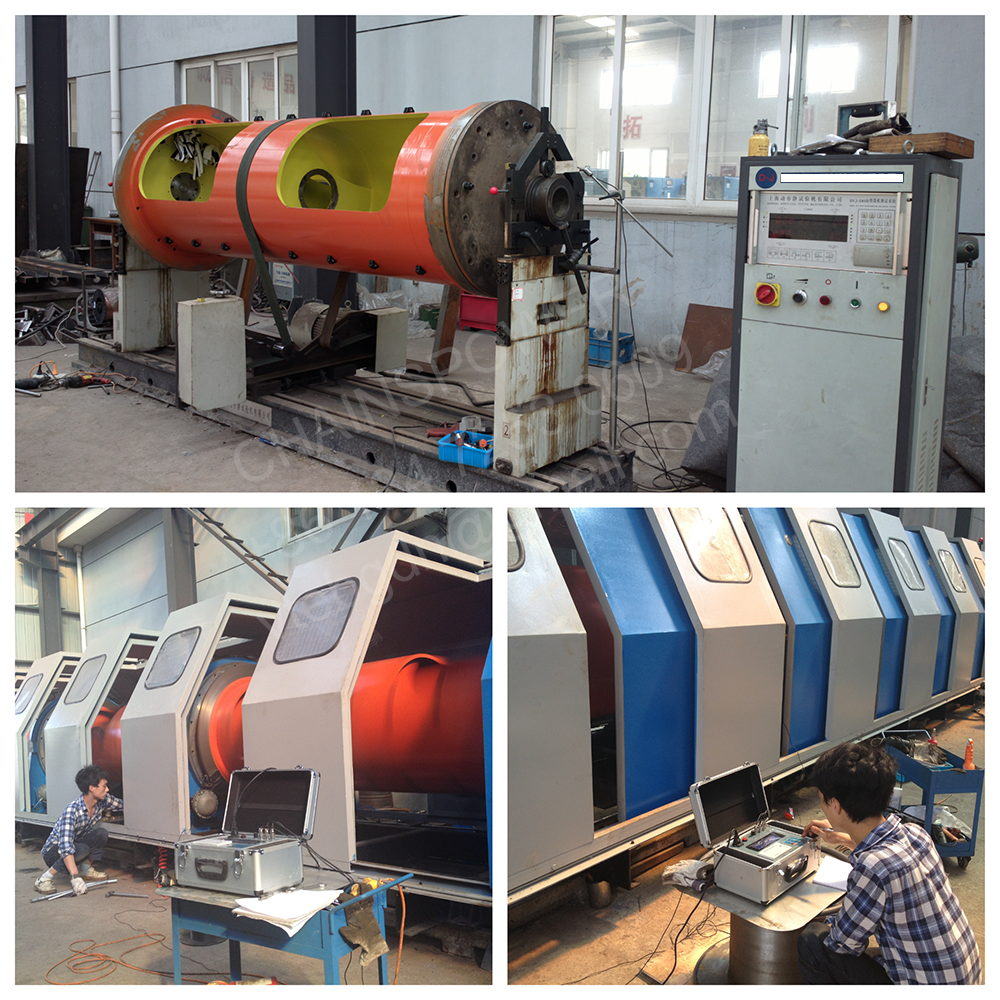

DYNAMIC BALANCING

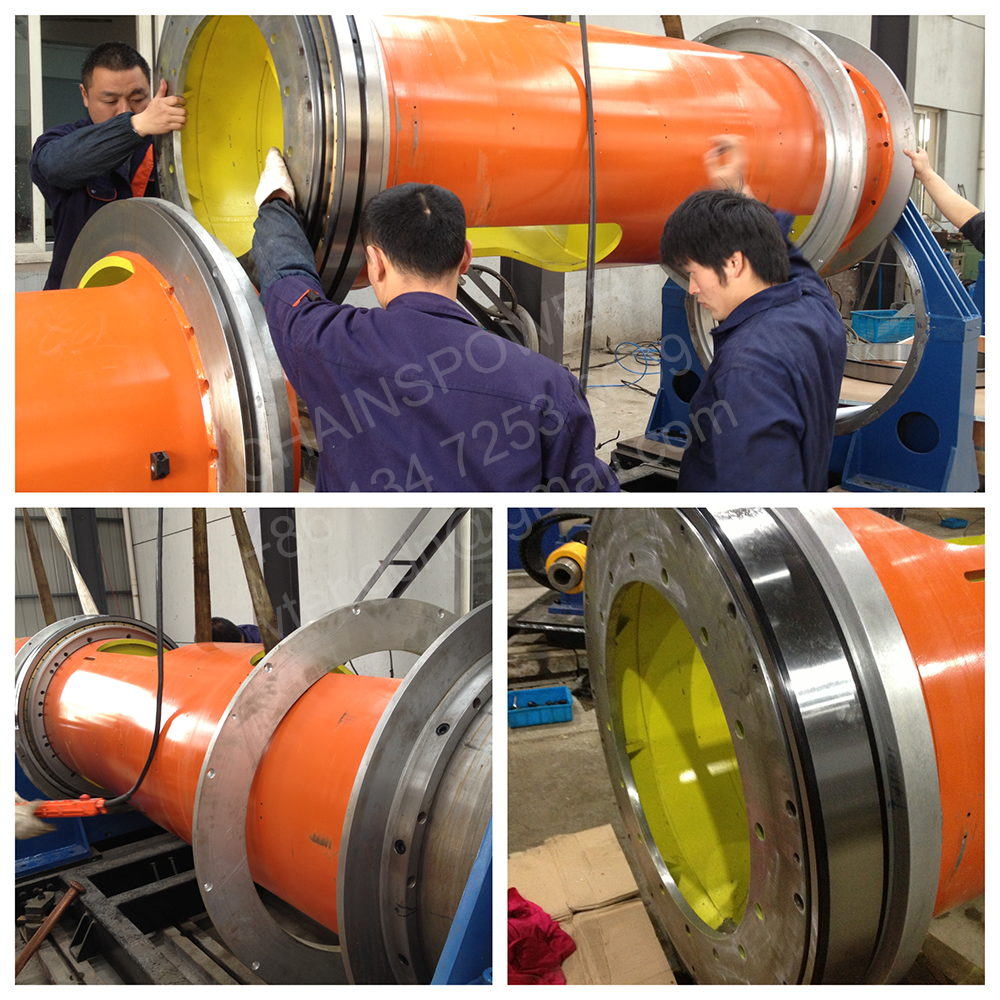

ASSEMBLY

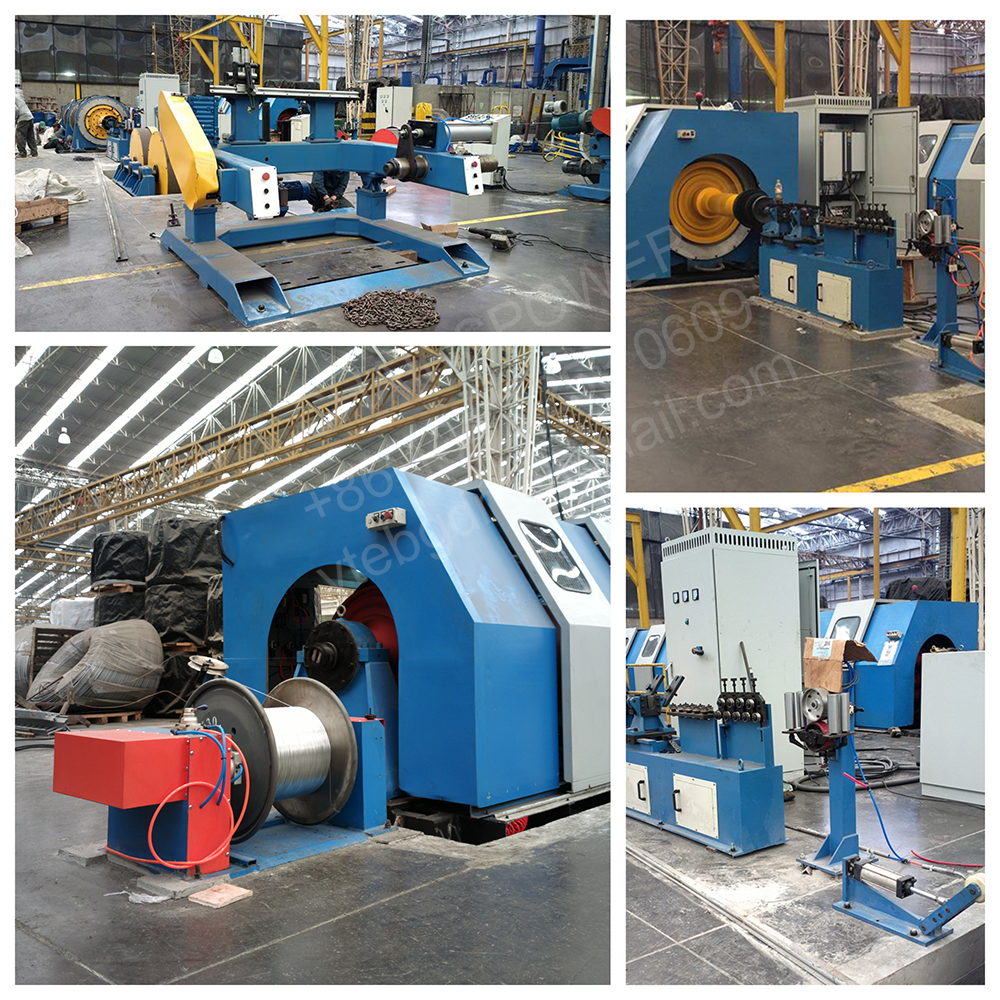

COMMISSIONING

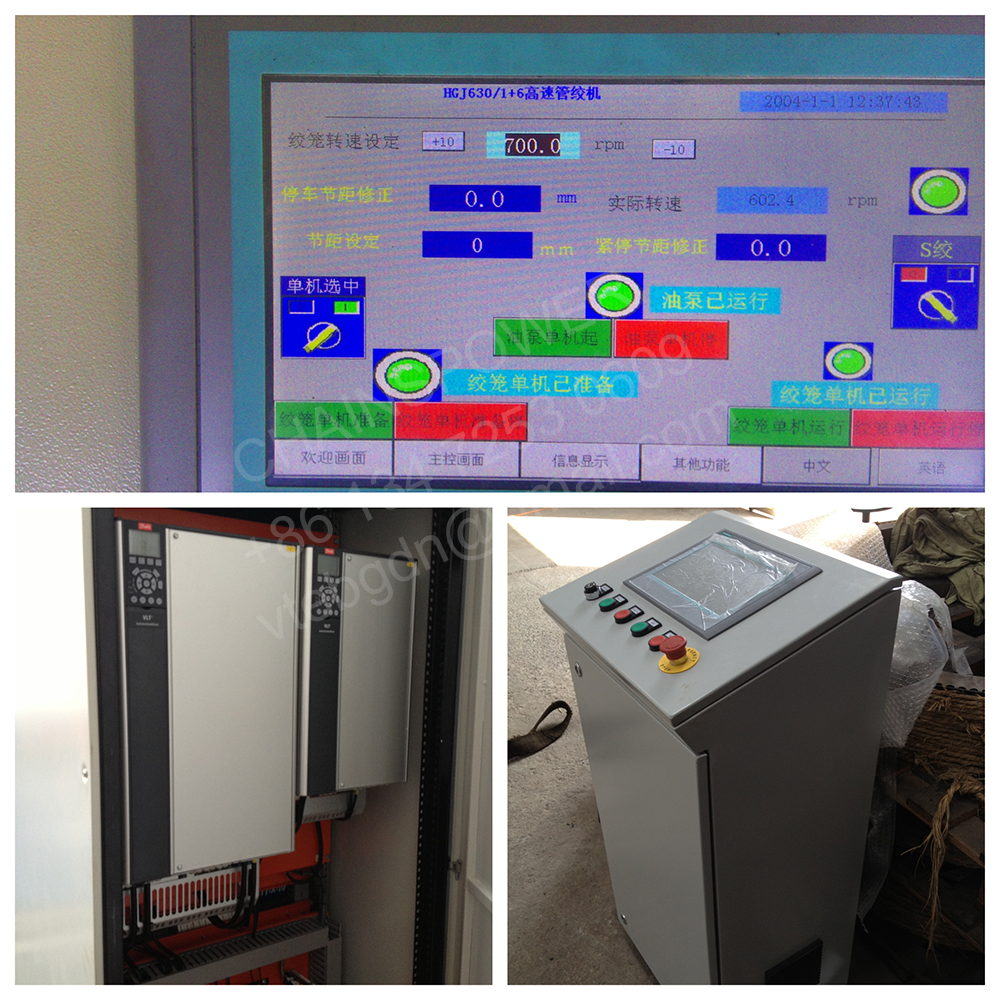

CONTROL PANEL

High-speed tubular stranding machines are characterised by:

• optimum tube design

• special bull head arrangements

• unitised tandem construction

• use of encircling bearings with centralized lubrication and temperature monitoring

• modern bobbin braking and bobbin drive systems to ensure constant tension in the wire

• fill-factor controlled friction brakes

• fill-factor controlled hysteresis brakes

• tension controlled, fill-factor controlled drives for each bobbin with tension recorder

• optimised wire guides to suit varying wire, strand or tube materials infinitely variable lay lengths through the use of separate assembly drive technology (AC and DC technology)

• 6 to 18 bobbins

• machine bobbin flange diameters 200-630 mm (as standard)
