Applications

Main rotor of the machine as well as the pulling CAPSTAN and the take up unit are independently driven by motor.

Description

synchronisation via speed or angular positional control or motive and tension control

What can we do?

Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

Images

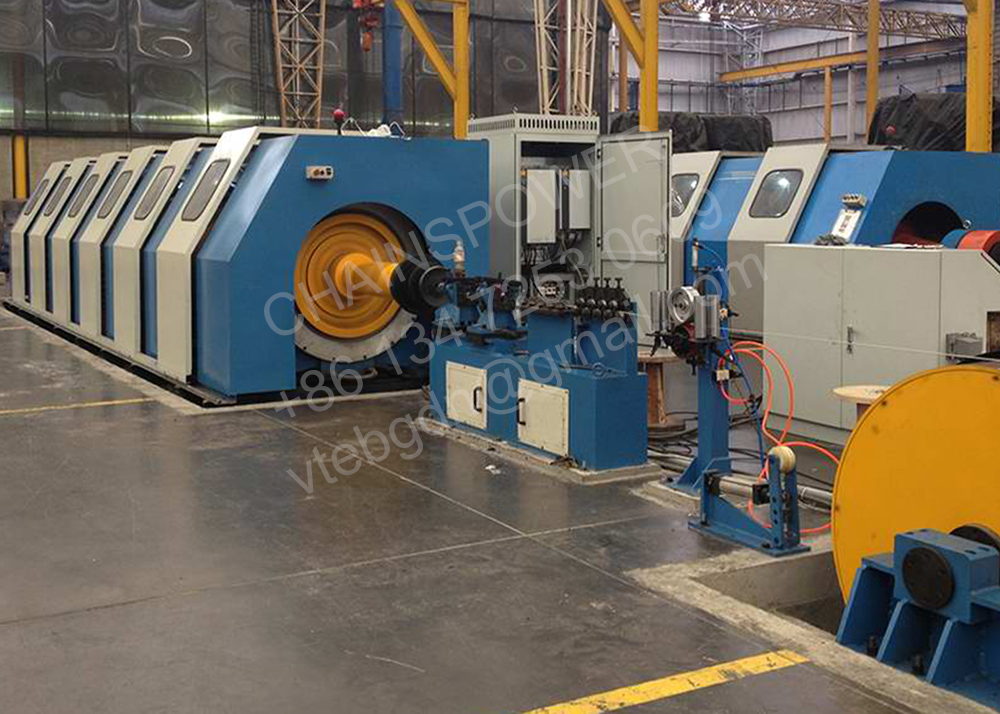

High-speed tubular stranding machines are characterised by:

• optimum tube design

• special bull head arrangements

• unitised tandem construction

• use of encircling bearings with centralized lubrication and temperature monitoring

• modern bobbin braking and bobbin drive systems to ensure constant tension in the wire

• fill-factor controlled friction brakes

• fill-factor controlled hysteresis brakes

• tension controlled, fill-factor controlled drives for each bobbin with tension recorder

• optimised wire guides to suit varying wire, strand or tube materials infinitely variable lay lengths through the use of separate ASSEMBLY drive technology (AC and DC technology)

• 6 to 18 bobbins

• machine bobbin flange diameters 200-630 mm (as standard)
